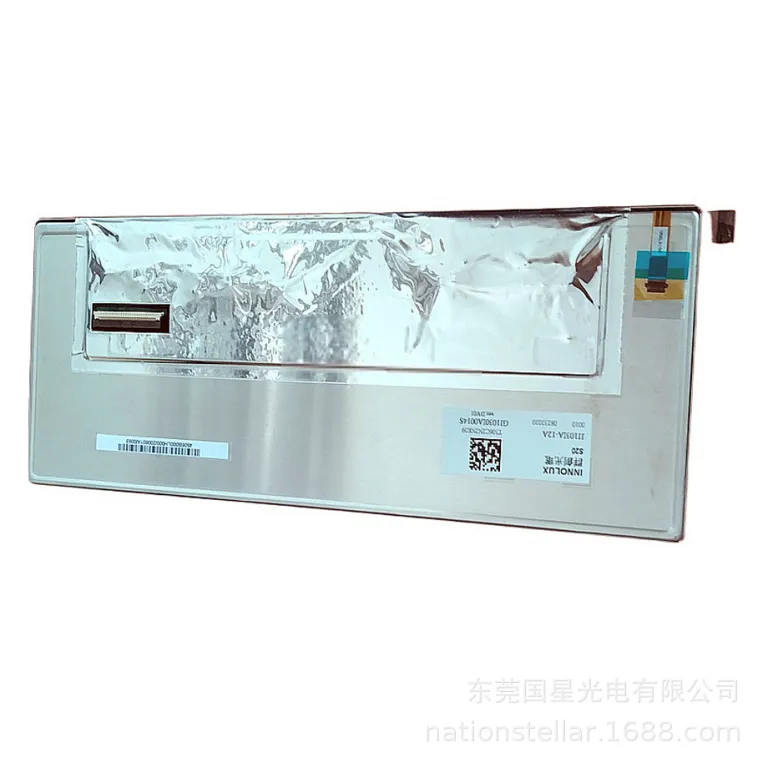

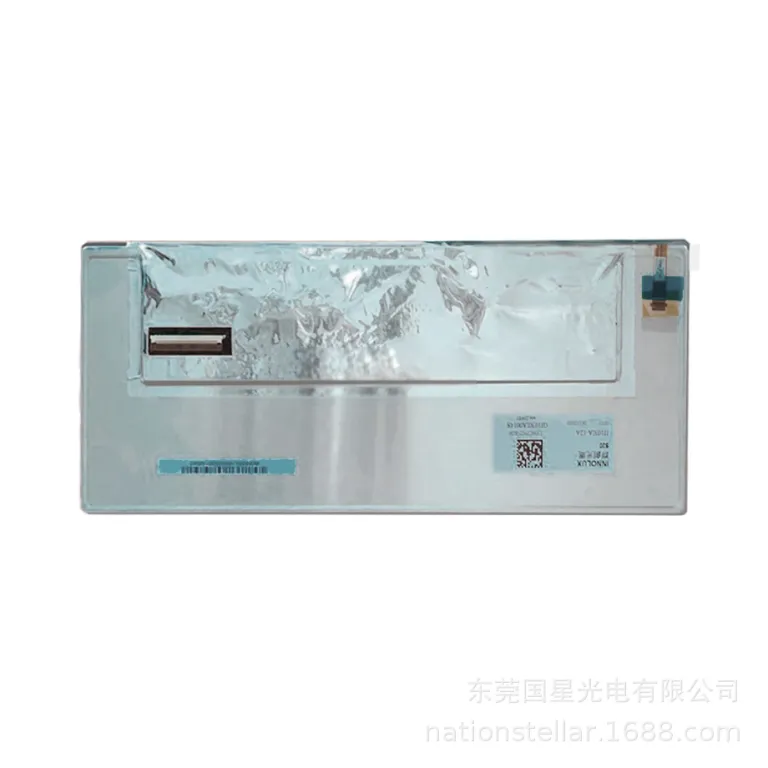

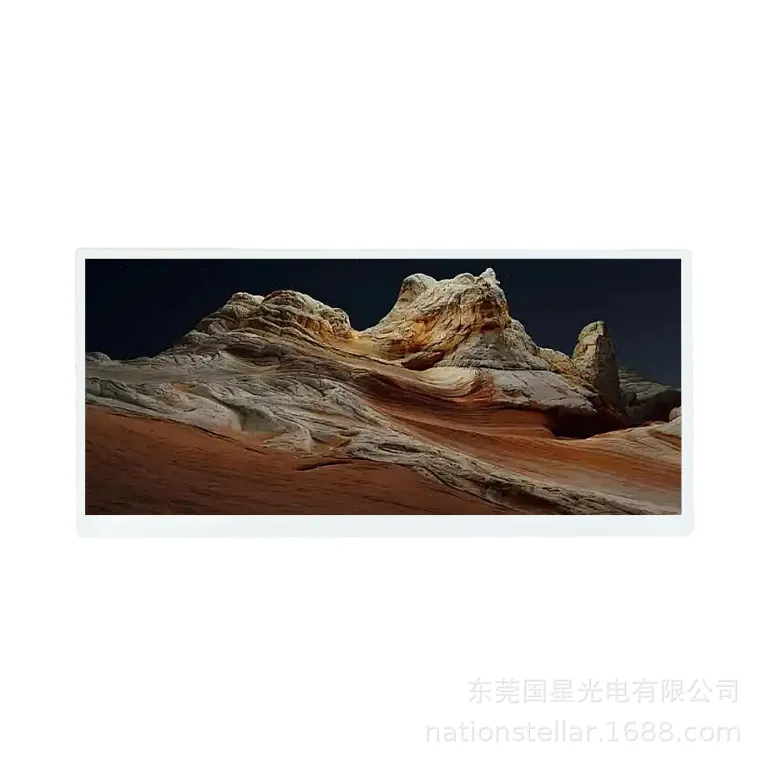

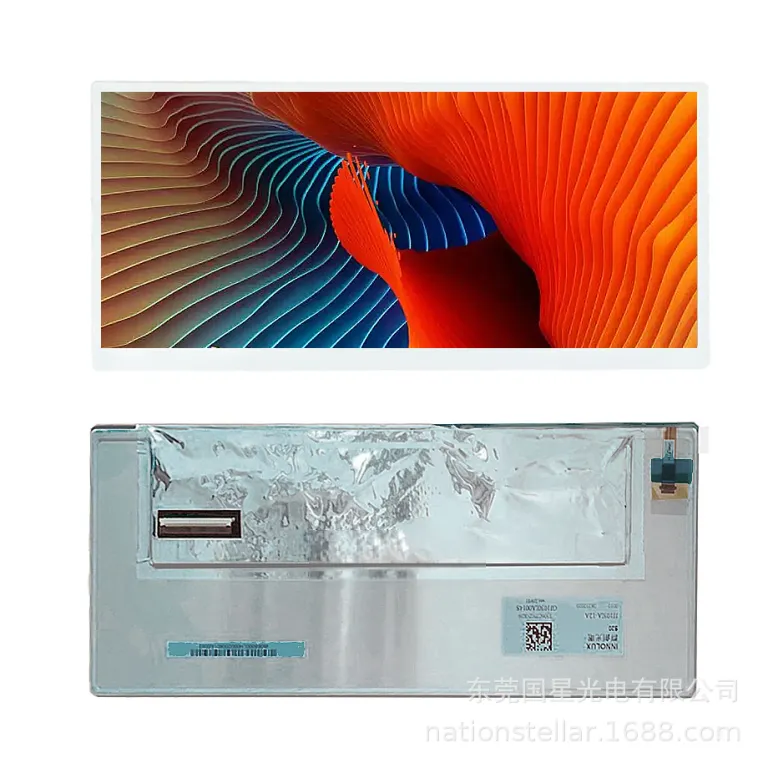

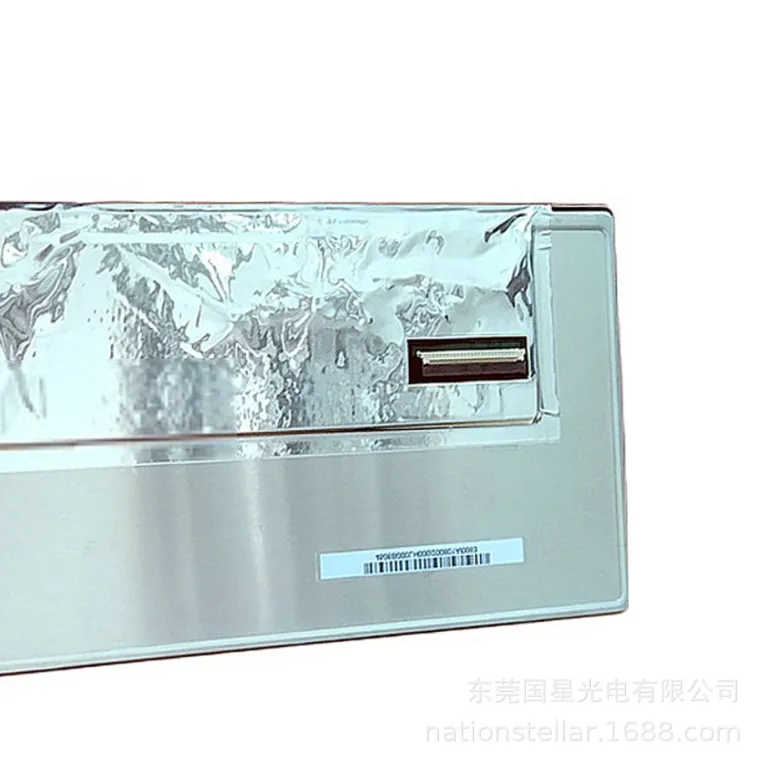

10.3 اینچ JJ103IA-12A ماژول نمایشگر LCD خودرویی فضای باز با قابلیت خوانایی در نور خورشید، دمای گسترده و صفحه فوق عریض

عنوان اصلی: 10.3英寸JJ103IA-12A阳光下可读宽温超宽屏户外车载显示液晶模组

واحد: 片

مبدأ: 广东省东莞市

品牌

群创 (Innolux)

主要下游平台

工厂，贸易商

是否跨境出口专供货源

否

触摸功能

无触摸功能

应用领域

户外高亮/车载显示

产品种类

a-Si TFT-LCD, 液晶模组

图形颜色

黑色反转

显示模式

常黑显示/透射式

产品认证

ROHS

• JJ103IA-12A 产品规格: JJ103IA-12A

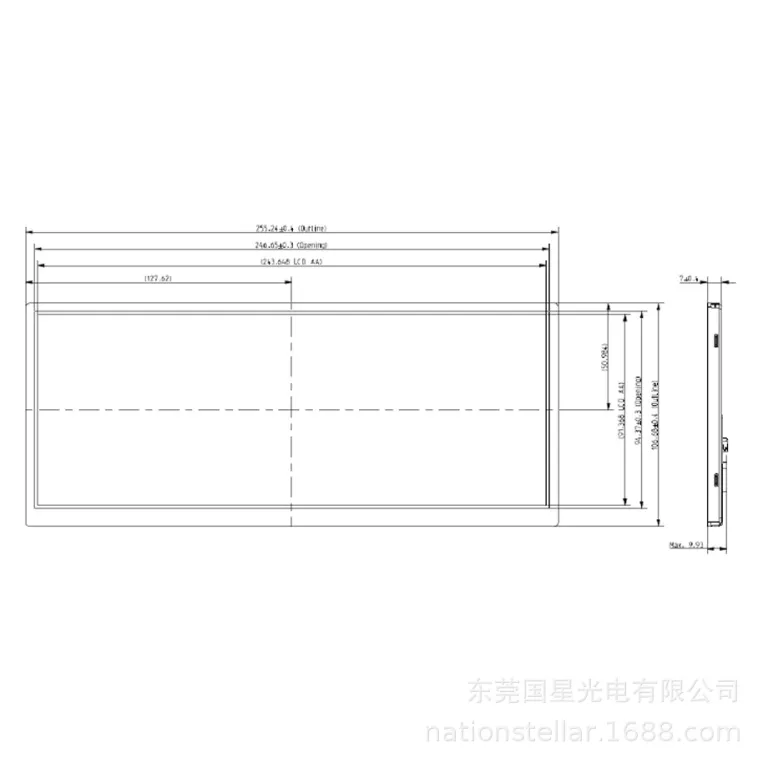

10.3英寸JJ103IA-12A阳光下可读宽温超宽屏户外车载显示液晶模组=================================================================================================================产品参数面板品牌： 群创 (Innolux)面板型号： JJ103IA-12A   面板尺寸： 10.3英寸面板类型： a-Si TFT-LCD, 液晶模组 分辨率： 1920(RGB)×720, 200PPI像素布局： RGB垂直条状 显示区域： 243.648(W)×91.368(H) mm外观尺寸： 255.24(W)×106.68(H)×9.93(D) mm 开口区域： 246.65(W)×94.37(H) mm表面处理： 雾面 显示亮度： 800 cd/m² (Typ.)对比度： 1300:1 (Typ.) (透射)     推荐视角： 全视角响应时间： 30 (Max.)(Tr+Td) ms 可视角度： 80/80/80/80 (Min.)(CR≥10) 显示模式： IPS，常黑显示，透射式   支持颜色： 16.7M , 73% NTSC光源类型： WLED  [4 strings] , 10K小时 , 无驱动 重 量： 315g (Max.)应用产品：户外高亮/车载显示     帧频率： 60Hz   触摸技术： 无触摸 接口类型： 50 pins   LVDS (2 ch, 8-bit) , 端子 电压供应： 3.3V (Typ.)   应用环境： 工作温度: -30 ~ 85 °C ; 存储温度: -40 ~ 90 °C ; 抗振性能: 2.0G (19.6 m/s²)==================================================================================================================================================================================================================================部分产品型号：JJ103IA-12ALB156WF1-SPA1LM270WR3-SSC2LQ070Y3LG05LQ121K1LG58NL6448AC18-11DNL10276AC30-42DP286IVN01.1QV101WUM-N80TCG057QVLGA-G00TCG070WVLPEANN-AN30TCG104XGLPAPNN-AN31-STM057KDHG04TM097TBHG02TM101DDHG04TM101JDHG32-00TM101JVHG32-01TM104SDHG40=================================================================================================================企业服务欢迎来到国星光电，这里是您采购高品质 TFT LCD 显示屏产品的首选之地。我们自豪地提供种类丰富的 LCD 屏幕、LCD 模组和 LCD 面板，均来自 LG、京东方（BOE）、友达光电（AUO）、群创光电（INNOLUX）等知名品牌，旨在满足各行业的多样化需求。我们的能力不止于销售 —— 我们还拥有先进的 LCD 玻璃切割技术，以及超高亮度（500-3500 尼特）背光生产与组装线。这使我们能够定制不同形状、尺寸和亮度的 LCD 模组，为广泛的应用场景提供灵活解决方案。无论您需要高亮度户外显示屏、工业设备用屏，还是精密电子显示屏，我们都能提供理想的产品满足您的需求。请注意，我们网站上展示的产品仅为我们庞大产品体系中的一小部分。如果您没有找到特定型号或规格的产品，欢迎联系我们专业的客服团队，他们将为您提供详细的产品信息和技术支持，助您找到完美的解决方案。我们期待成为您值得信赖的合作伙伴，致力于为您提供卓越的 LCD 显示产品和优质的服务。让我们携手，为您找到恰好所需的产品！1. What is an LCD module?** - An LCD (Liquid Crystal Display) module is a device that uses liquid crystals to display visual information. It is commonly used in electronic devices to show data, images, or text.2. How does an LCD module work?** - LCD modules work by blocking or allowing light to pass through liquid crystal cells. The crystals change orientation when an electric field is applied, controlling light passage and forming images or characters.3. What are the types of LCD modules?** - The main types of LCD modules are:- TN (Twisted Nematic)- IPS (In-Plane Switching)- OLED (Organic Light Emitting Diode)- STN (Super Twisted Nematic)- TFT (Thin Film Transistor)4. What is the difference between TFT and LCD?**- TFT is a type of LCD. While LCD refers to the display technology, TFT (Thin Film Transistor) is a subtype that uses transistors to improve image quality, response times, and power consumption.5. How is the backlight used in LCD modules?** - LCD modules require backlighting to illuminate the display, as liquid crystals do not emit light. Common backlighting sources are LED and CCFL (Cold Cathode Fluorescent Lamp).6. What are the typical applications of LCD modules?**- LCD modules are used in various devices such as smartphones, tablets, televisions, industrial control displays, digital watches, calculators, medical devices, and automotive displays.7. What is the difference between passive and active matrix LCDs?**- Passive matrix LCDs control the pixels by charging them row by row, which results in lower refresh rates and contrast. Active matrix LCDs, such as TFT displays, control each pixel individually for better performance.8. How do you interface an LCD module with a microcontroller?**- LCD modules can be interfaced with microcontrollers using various communication protocols, such as parallel (using data and control pins) or serial (I2C, SPI) connections.9. What is the lifespan of an LCD module?** - The lifespan of an LCD module typically ranges between 30,000 to 100,000 hours, depending on factors like usage, temperature, and backlight type.10. Can LCD modules be used in extreme environments?** - Yes, there are specialized LCD modules designed for use in extreme temperatures, high humidity, or rugged environments, often used in industrial, automotive, and military applications.11.What is the MOQ on your product?**Answer:We can supply 1 unit for a sample order. There is a small quantity in stock. If you need a discount for bulk orders, please feel free to contact our online sales manager.12.What is your modes of transportation in logistics?What's the delivery charge and delivery date?**Answer:Our mode of transportation mainly include express, sea and air shipments, and the delivery charge is calculated based on your address and the product quantity. All products can be delivered within 7-10 days if we have stock. If you have any customization requirements, please contact us for confirmation. Our strong R&D team can meet your special needs in time.13.What is your products warranty and your after-sales service?**Answer:Our company is a certified national high-tech enterprise.Our products have passed IS09001 quality management systemcertification,China Compulsory Certification(CCC),FCC,CE,RoHS,HDMI and other certifications,and have been consistently praised by our customers.The warranty period is one year.Our company supports online after-sales service to response your questions in time and help you solve the problem as soon as possible.14.Could you customize the product for me?**Yes,Our capabilities extend beyond just sales;we also have advanced LCD glass cutting technology and ultra-high brightness(500-3500nit) backlight production and assembly lines.This allows us to customize LCD modules in various shapes, sizes, and brightness levels, providing flexible solutions for a wide array of applications.Whether you require high-brightness outdoor displays, industrial equipment, or precision electronic displays, we have the ideal product to meet your needs.15.What is your product packaging solution?Is it reliable?**The package is a reliable packaging contains the quality product which has passed inspections and drop test.We guarantee to deliver your goods in good condition.16.How does Guoxing guarantee the quality?**Answer:Guoxing has passed IS09001:2008 certification.ISO principle is carried out in daily activities.The quality is strictlycontrolled in designing,material incoming,production process,equipment,management and checking and the rejects are not allowed to flow at any circumstances. Guoxing has thousands of customers,in many cases,one product is being used by many customers.If one product is used by many factories,the quality is believable because most of the problems were solved already. The Guoxing is following the quality standards from automotive industry.Special attention is paid to the capacity of anti-high-temperature,anti-shock and aftersales reliability.We don't fear the rejects on the production line,we badly fear the rejects at the final consumer's hand.Solving such kind of rejects are most costly.Guoxing is always pursuing 0 aftersales reject,so we adopted the strictest quality standards.17.Why are Guoxing products higher in price？**Answer:The LCD quality has three standards:1.consuming standards.2.Industrial standards 3.Automotive standards.Automotive standards are the highest grade which require the strong anti-shock capacity,anti-high-temperature capacity,high reliability and very low rate of reject.To follow automotive standards,we have to select the best raw materials,and bring in the most expensive equipment and very tough management,so our cost is higher. 18.How long can we expect the samples?**Answer:Immediately in most of the cases.
